You control the treatment from the handle!
What is a Skanlab VET
Skanlab Vet diathermy device is intended for the treatment of muscle, tendon and ligament injuries, degenerative musculoskeletal conditions and pain in animals, and as part of a treatment regime that may include other treatments. Specific applications include:
• Acceleration of soft tissue and muscle healing after injury
• Control of pain, including joint pain
• Acceleration of joint healing and pain conditions in joints
• Better elasticity of muscles and soft tissues
Skanlab VET is also widely used for PREVENTIVE TREATMENT
Technical operation
Skanlab Vet generates an electrostatic field energy with a frequency of 500 kHz (0.5 MHz).
The watt power is 25 watts, and the power is based on creating an alternating static current that creates an electrodynamic field and therefore uses the complex of electrodynamics. The unit is classified as a longwave (600m) diathermy device (monopolar). The current is characterized by being a capacitive high-frequency current.
The device itself is grounded, but the current processing circuit itself does not contain a "real" grounding electrode. Treatment electrode, and patient current return electrode are only part of the circuit to treat the patient (animal), and to close the circuit. The animal's tissue is also part of this circuit. The effect of the heating is generated in the tissue under the treatment electrode.
The Skanlab unit operates by dielectric or capacitance - When dielectrically connected diathermy is used, a rapidly alternating voltage differential is created which produces a rapidly alternating electric field in a circuit. The treatment electrode and patient current return electrode are placed with adequate and optimal skin contact with the patient. The electric field penetrates into the tissues (through the surface of the enamel on the treatment electrode and the animal's skin tissue) in the relevant area of the body. The energy enters the tissue via the treatment electrode and emits energy in the form of heat, and returns via the patient current to the return electrode, thereby closing the treatment circuit.
The heating effect in the tissue is below the treatment electrode. Due to the electric charges in the tissue molecules, the ions in the tissue will try to align with the rapidly changing electric field. This rapid movement, or exchange, of the ions causes friction or collision with other ions and charges and produces heat in the tissue. The electric field strength is determined by the degree of potential difference between the electrodes set by the unit's current regulator. Since the frequency is not varied, the average effect determines the actual effect of the heating. The heating itself is due to loss of energy in the tissue. This in turn provides less energy through the surrounding tissue and to the patient current return electrode.
In which conditions in horses / dogs does Skanlab VET show a good effect?
Skanlab Vet is pre-programmed for
-
Larger animals (represented by horses)
-
Smaller animals (represented by dogs)
-
Digital Flexor Tendinopathy
-
DDFT Accessory / Check ligament
-
Tenosynovitis (digital sheath dysfunction)
-
Osteoarthritis / Bone Spavin
-
Tendinopathy / Bowed Tendon
-
Partial Rupture Muscle / Ligament
-
Sacroiliac joint syndrome / Low back pain
-
Arthritis
-
Edema / Hematoma
-
Myalgia / Myopathy
-
Muscle Strain
-
Ischemia
-
Main problems
-
Osteochondritis dissecans
-
Partial Muscle / Ligament Rupture
-
Sacro-Iliac Joint Syndrome
-
Arthritis
-
Edema / Hematoma
-
Myalgia / Myopathy (soft tissue injuries)
-
Muscle Strain
Dog
Horse
Contact Skanlab AS for
In-depth information / documentation
Precautionary information
Information on contraindications
Information on practical use
Demonstration
Technical specifications
Technical approvals: CE
Skanlab VET ™ satisfies all orders and standards in accordance with European regulations:
• Low voltage directive (2014/35 / EU);
• EMC Directive (2014/30 / EU);
• Machinery directive (2006/42 / EU);
• RoHS directive (2011/65 / EU amended by 2015/863 / EU).

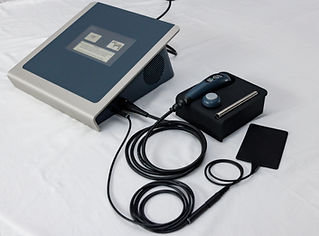

Standard equipment
-
1 pc Skanlab VET ™
-
1 cable for power connection
-
1 pc patient current-return electrode (flexible rubber electrode)
-
1 patient current-return electrode (glossy metal rod)
-
2 rubber bands to attach patient current-returning electrode to horse / dog, 2.5m and 1m
-
1 plastic plug to lock rubber bands
-
1 treatment electrode Ø23 mm
-
1 treatment electrode (Ø30 mm) connected to treatment handle
-
1 piece of silicone block for use with the electrodes between treatments
-
1 l Skanlab Therapy Cream
-
1 document that is the test certificate (preserved)
-
1 User Guide (this document)
Optional equipment
Treatment electrode, Ø30mm
Treatment electrode, Ø40mm
Patient current return electrode (flexible rubber electrode)
Patient current return electrode (shiny metal rod)
Rubber band 1 m length VET
Rubber band 2.5 m length VET
Black plastic locking plug VET
Complete electrode handle ("remote")
Electrode cable, black
Power cable
Skanlab Therapy Electrode Cream, 1ltr
Skanlab Therapy Electrode Cream, 5ltr
Dosing pump for 5 l jug
Technical specifications
-
Main voltage: 100-240 Volts,
-
Frequency: 50/60 Hz
-
Current: 0.6 –1.2 A.
-
Max. Output power: 25W
-
Continuous output frequency: 500 kHz
The unit
Medical classification: IIa (according to MDD 93/42 / EEC)
Safety class: In type BF, according to IEC 60601-1
Patient leakage current: better than IEC requirements (IEC <100 µA)
Ditto, first fault condition: better than IEC requirements (IEC <500 µA)
Dimensions: 302x300x126.5mm (lxwxh)
Weight: 4.3 kg
Fuses: 2xT 2.5AH 250V
Environmental conditions
Environmental conditions for transport and storage
Environmental temperature: - 10 C to + 40 C.
Relative humidity: 10 to 90% (no condensation)
Atmospheric pressure: 500 to 1060 hPa
Environmental conditions for normal use
Environmental temperature: - 10 C to + 40 C.
Relative humidity: 10 to 90% (no condensation)
Atmospheric pressure: 800 to 1060 hPa
Classification: CE
Classification of Skanlab VET
• Class IIa according to the Medical Devices Directive (MDD 93/42)
Software
Class A according to EN ISO 62304, Software Safety Classification
Implemented security standards
• IEC 60601-1: Medical electrical equipment - Part 1: General safety requirements
• IEC 60601-1-2: Electrical Medical Equipment - Part 1: General requirements for basic safety and critical performance - Section 2: Safety standard: Electromagnetic interference - Requirements and tests
• IEC 60601-1-4: Medical electrical equipment - Part 1-4: General safety requirements - Safety standard: Programmable electrical medical systems
• IEC 60601-1-6: Medical electrical equipment - Part 1: General safety requirements - Section 6: Safety standard: Usability
• IEC 60601-1-11: Medical electrical equipment - Part 1: General requirements for basic safety and critical performance - Section 11: Safety standard: Requirements for medical electrical equipment and medical electrical systems used in the home health environment
• EN ISO 62304: Software for medical devices - life cycle processes for software
• EN ISO 14971: Medical devices - Use of risk management on medical devices
• EN ISO 10993: Biological evaluation of medical devices - Part 1: Evaluation and testing in a risk management process
13.7 Production standards
• EN ISO 13485 Medical devices - Quality management systems Requirements for regulatory purposes
